UA-G2-SK - Ubiquiti UniFi Access 2nd-generation single door starter kit
Features
Ubiquiti UniFi Access G2 Starter Kit (UA-G2-SK)
The Ubiquiti UniFi Access G2 Starter Kit (UA-G2-SK) provides an easy entry point into the UniFi Access system, specifically designed for single-door access control. This kit includes essential components like the UniFi Access Door Hub, an Access Reader G2, and ten UniFi Access Cards, streamlining the access management process. The Access Reader G2 features a robust polycarbonate enclosure for durability.

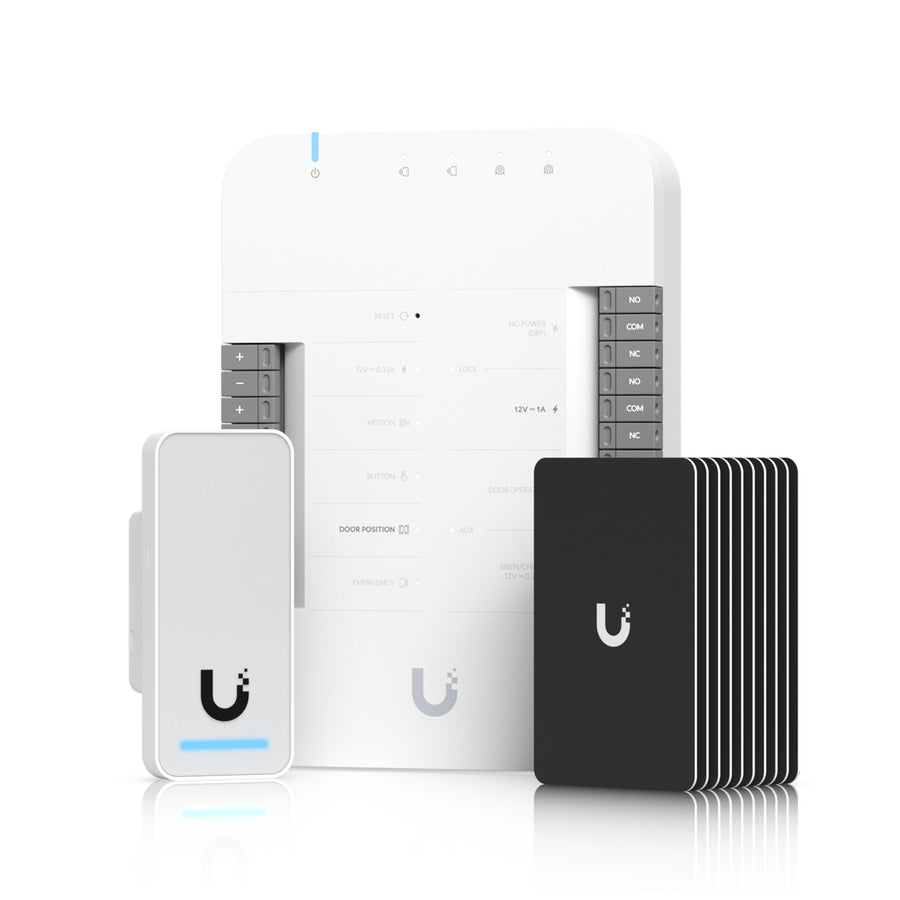

UA-G2-SK includes:
(1) UniFi Access Door Hub

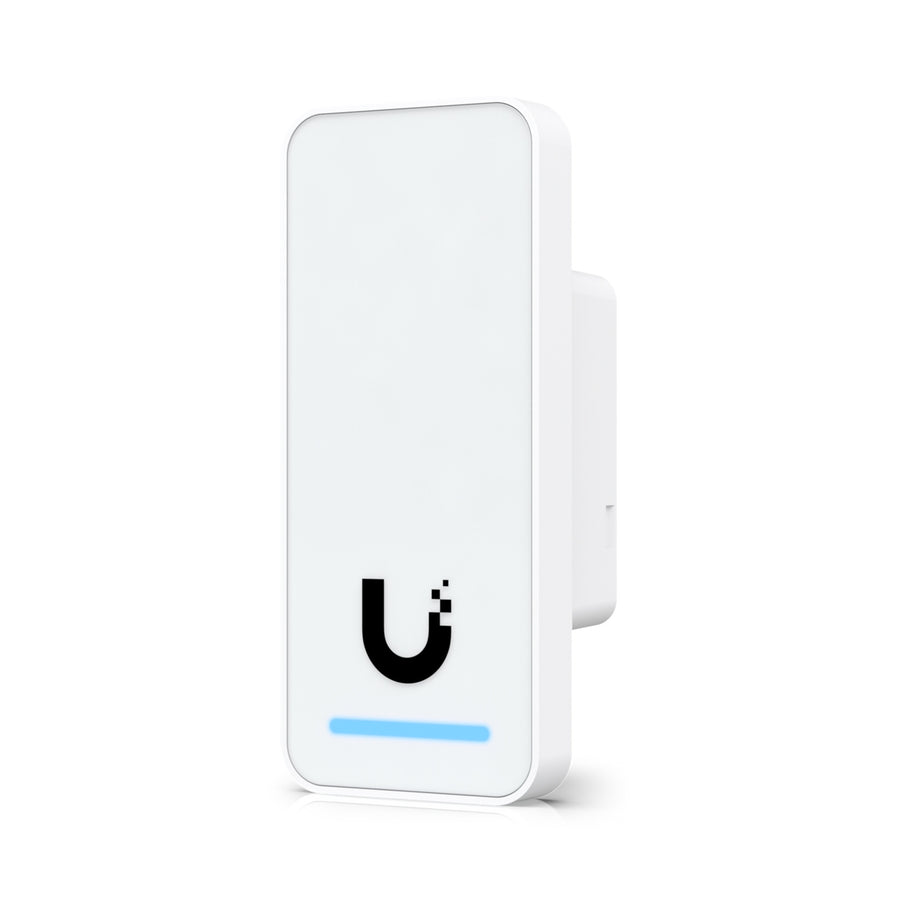

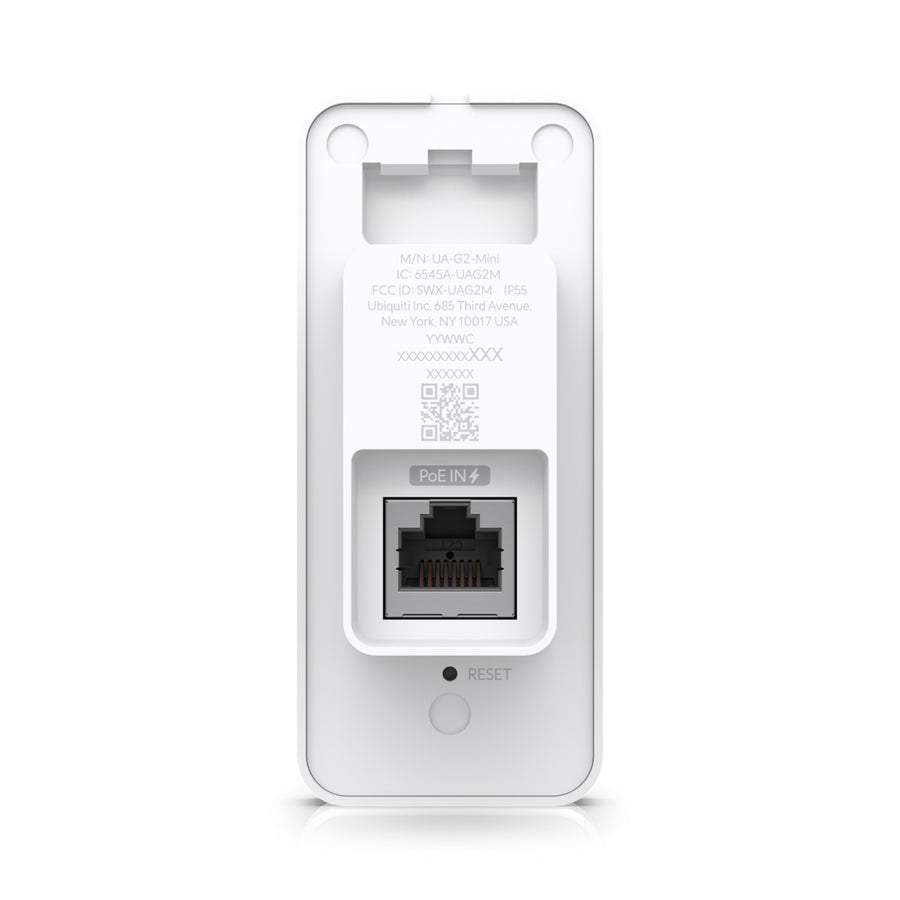

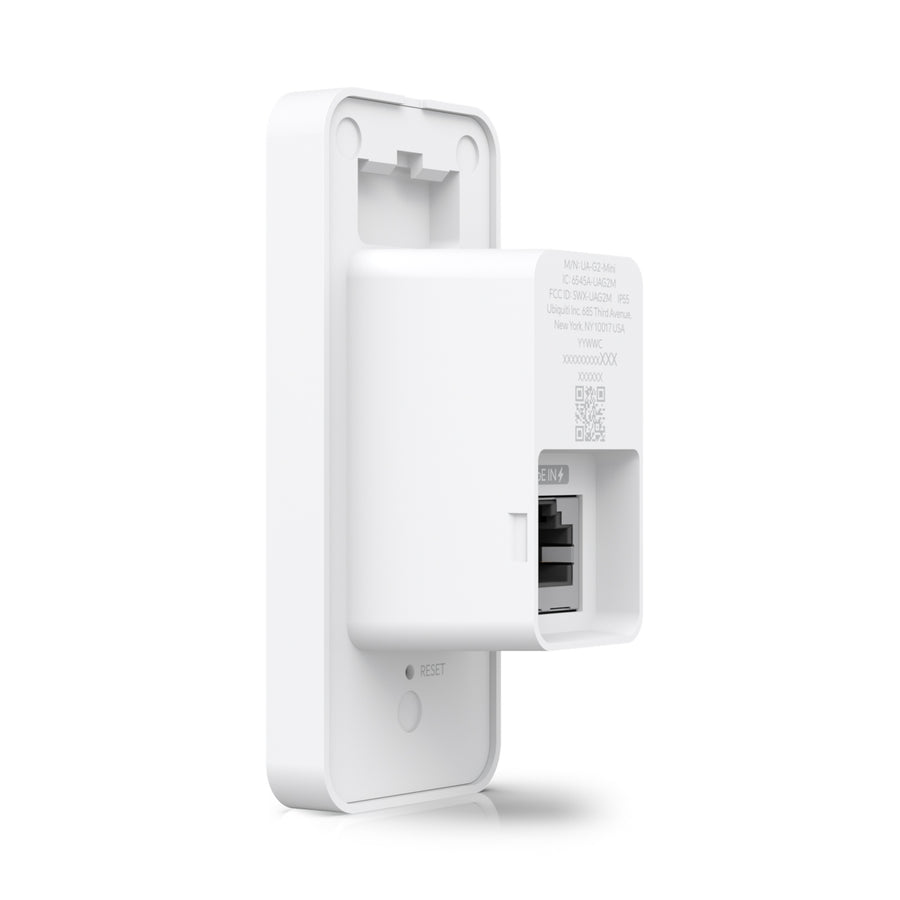

(1) Access Reader G2

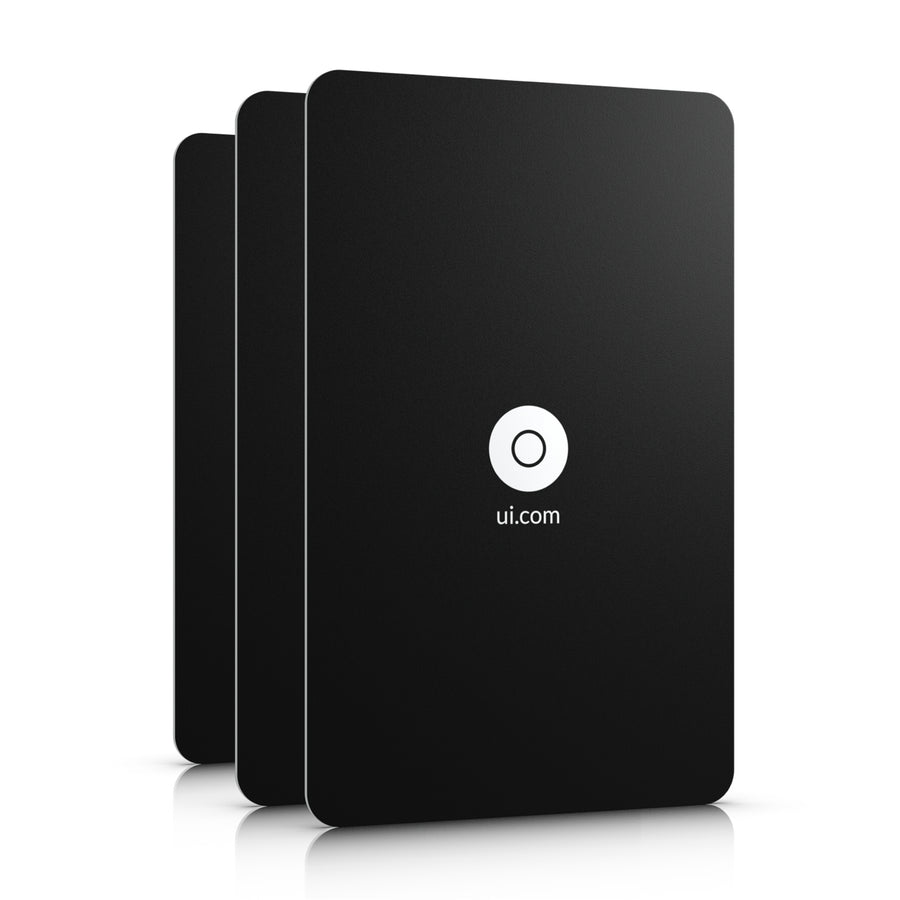

(10) UniFi Access Cards

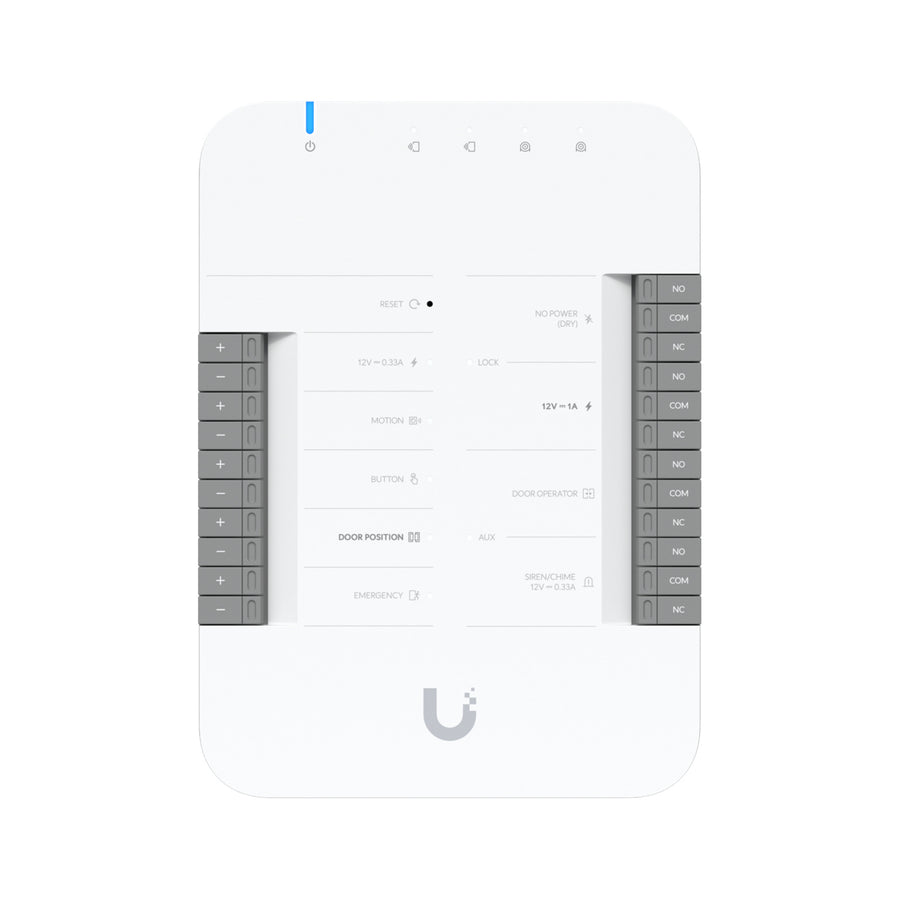

The UA-Hub-Door, a key component of the kit, offers high-speed connectivity with its 10/100/1000 Base-T networking interface and PoE++ support. It's equipped with various input and output options, making it suitable for indoor use and compliant with multiple certifications, ensuring security and reliability. The included UniFi Access Cards simplify secure access management.
Specifications
Technical Specifications
| Dimensions | 174.9 x 126 x 32.9 mm (6.9 x 5 x 1.3") |
|---|---|
| Weight | 363 g (12.8 oz) |
| Enclosure material | Polycarbonate |
| Mounting material | Polycarbonate |
| Networking interface | (5) 10/100/1000 Base-T |
| Power method | PoE++UL 294 Power-limited Class 2 PSUUL 60950/62368 LPS/PS2 PSU |
| Max. power consumption | Without PoE output: 30WWith PoE output: 50W |
| PoE input | 50V DC, 1A |
| PoE output | PoE passthrough, (4) PoE, 50V DC, total 20W |
| Button | (1) Factory-reset |
| LEDs | System: white/blueOutput relays: white |
| Digital input | Request to exit/request to enter/remote release/door position sensor |
| Dry output relay | Lock: 30V DC, 1AAux: 30V DC, 1A |
| Powered output relay | Lock: 12V DC, 1AAux: 12V DC, 0.33A12V DC, 0.33A |
| Operating environment | Indoor use only |
| Operating temperature | 0 to 40° C (32 to 104° F) |
| Operating humidity | 5 to 95% noncondensing |
| UL 294 level | Destructive attack: Level ILine security: Level IEndurance: Level IStandby power: Level I |
| UL 294 statement | Compliance with IEEE 802.3 (at or af) specifications was not verified as part of UL 294.The equipment is intended to comply with the section of the National Electrical Code, ANSI/NFPA 70, Article 725.121, Power Sources for Class 2 and Class 3 Circuits. |
| CAN/ULC-60839-11-1 Grade | Grade assignment: 1 |
| Certifications | CE, FCC, IC, UL 294, CAN/ULC-60839-11-1 |
| Document number, and issue date and/or revision level | UA-Hub-Door002, V01 |
| Typical installation (Shielded) | DC power input: Belden 8750 18 AWG 2 conductor (30.5 m/100 ft)Door position switch: Belden 8750 18 AWG 2 conductor (152.5 m/500 ft)Request to exit: Belden 8750 18 AWG 2 (152.5 m/500 ft) |
| Wiring gauge requirements (AWG) | Total length to device / Output load current at 12V DC6.1 m (20 ft)100mA: 22250mA: 22500mA: 221A: 1815.2 m (50 ft)100mA: 22250mA: 22500mA: 221A: 1830.5 m (100 ft)100mA: 22250mA: 22500mA: 181A: 18 |
| PoE cabling requirements | The minimal conductor gauge permitted to connect between the PSE or power injector and the PD shall be 24 AWG (0.21 mm2) for horizontal or riser cable. |
| PoE in | Steady blue: Adopted/device is readySteady white: Pending adoptionBlinking white/blue: Upgrading firmware |
| PoE out | Off: Not connected or no data linkSteady blue: Connected and data link on |
| Dimensions | 93 x 40 x 36.5 mm (3.7 x 1.6 x 1.4") |
| Weight | 82 g (2.9 oz) |
| Enclosure material | Polycarbonate, glass |
| Mounting | In wall, gang box |
| Weatherproofing | IP55 |
| Networking interface | (1) 10/100 MbE RJ45 port |
| Connectivity | BLE 4.1 |
| Power method | PoE |
| Supported voltage range | 48V DC |
| Max. power consumption | 5W |
| ESD/EMP protection | Air: ±15kV, contact: ±8kV |
| Sensors | Proximity sensor |
| Speaker | (1) 8 ohm, 0.7W |
| LEDs | R/G/B/W |
| Button | (1) Factory-reset |
| NFC frequency | 13.56 MHz |
| NFC read range | < 30 mm |
| NFC standards | ISO 14443A, 14443B, 15693 |
| NFC technology | NFC Tag 1,2,3,4,5MIFARE ClassicMIFAREPlusMIFARE UltralightMIFARE DESFire |
| Operating temperature | -30 to 45° C (-22 to 113° F) |
| Operating humidity | 5 to 90% noncondensing |
| Certifications | CE, FCC, IC |
| Dimensions | 85.6 x 53.98 x 0.84 mm (3.37 x 2.13 x 0.03") |
| Weight | 5 g (0.18 oz) |
| Format | ISO 7810 ID-1 |
| NFC frequency | 13.56 MHz |
| NFC technology | ISO/IEC 14443 Type AMIFARE DESFireUniFi Access Proprietary Security Protocol |
| Brand | Ubiquiti |
|---|---|
| Product Type | Smart Home & Security > Security Systems |
| Weight | 1.0 kg |
| Warranty |
|---|
