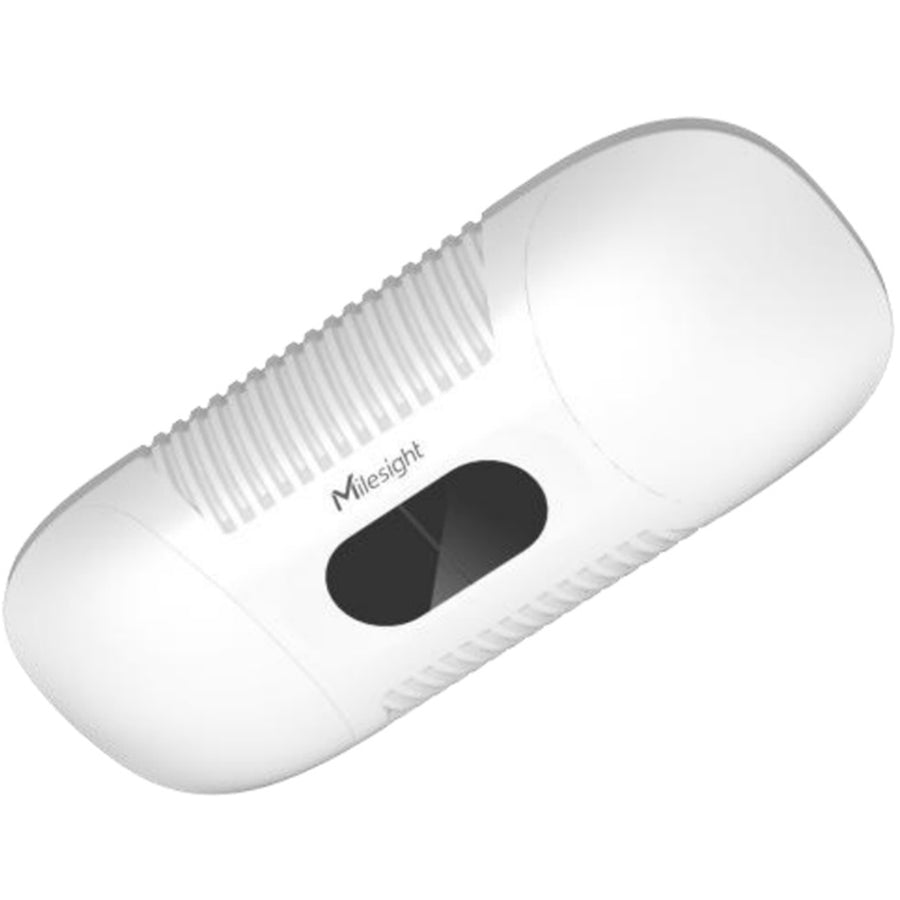

VS135-P - Milesight VS135-P Ultra ToF People Counter
VS135-P - Milesight VS135-P Ultra ToF People Counter
Features
Milesight VS135 Ultra Time-of-Flight technology (ToF) People Counter, actionable People Counting Insights for Every Scene. Counting people in and out concurrently and detecting the U-shape tracks to filter out redundant counting of people wandering. Capturing foot traffic within maximum 4 customized regions to gain actionable insights in various applications. Getting the dwell time of each person within maximum 4 customized regions to enable people counting to be more helpful in actual applications.
With simple configurations, the sensor can smoothly fuse up to 4 sensors to extend the covering area. The quadruple insights offer a clearer picture of the number in the large target area for more integrated and valuable information.
The sensor captures people flow, dwell time, and motion to generate a comprehensive heat map. It provides deeper insights by visually representing the distribution and intensity of foot traffic, enhancing the understanding of customer/consumer behavior and allowing for optimization on user experiences, store layouts, and data-driven decision-making.
Featuring the power of deep learning AI and 2nd generation ToF technology, the counter achieves precise and anonymous people counting capabilities, making people counting smarter than ever. Time-of-Flight technology is an effective means of counting people without intruding on their privacy or private data.
- Bi-Directional People Counting
- Regional People Counting & Dwell Time
- 6.5M High Ceiling Mounting Version Available
- IP65 Rated Waterproof Protection
- Ultra High Accuracy of 99.8%
- 100% Anonymous Detection (GDPR Compliant)
- Radar Based ESG Friendly Working Mode
- Staff Detection & Adults/Children Differentiation
- Insightful Group Counting & Advanced Heat Map
- Extendable Multi-Device Stitching
Specifications
Technical Specifications
| MPN | VS135-P |
|---|---|
| Version | PoE Version |
| ToF FoV | Standard Version: 98° Horizontal, 80° Vertical, High Ceiling Mount: 60° Horizontal, 45° Vertical |
| ToF Light Beam | 940nm (Invisible) |
| Measuring Accuracy | Standard Version: = 3.5cm, High Ceiling Mount: = 6.5cm |
| Detection Range | Standard Version: 0.5 ~ 3.5m, High Ceiling Mount: 2~ 6.5m |
| Recognition Rate | Up to 99.8 |
| Installation Height | Standard Version: = 3.5m, High Ceiling Mount: = 6.5m |
| Luminous Mode | Auto / Always On |
| Bi-Directional People Counting | Up to 4 detection lines for bi-directional people counting |
| U-turns Filtering | Filter redundant counting of people wandering in the bi-directional people counting areas |
| Regional People Counting & Dwell Time Detection | Up to 4 detection areas (up to 10 decagon for each area) for regional people counting and dwell time detection |
| Group Counting | Support |
| Children/Adults | Differentiation Support |
| Staff Detection | Support |
| Heat Map | Motion Heat Map, Dwell Heat Map |
| Multi-Device Stitching | Up to 4 devices stitching to expand coverage |
| Data Retransmission | Support 8 x 50000 data retransmission packets |
| Video Validation | Support 1 channel video validation ( the duration of 4 hours) |
| Ethernet Port | 1 × RJ45 10/100 Mbps (PoE PD) |
| Network Protocol | HTTP, HTTPS, MQTT, MQTTS, NTP, etc. |
| Power Input | 1 × DC Jack Connector |
| Alarm I/O | 45292 |
| Wi-Fi | IEEE 802.11 b/g/n, 2.4GHz (AP Mode for configuration) |
| Button | 1 × Reset/Wi-Fi Button |
| LED Indicators | 1 × RGB LED indicator |
| Local Storage | Store up to one million data records and supports to export csv file |
| Power Supply | 802.3at PoE+ or DC 12V/2A |
| Operating Temperature | -20°C ~50°C |
| Relative Humidity | 0 - 95% (Non-condensing) |
| Ingress Protection | IP65 |
| Dimension | 200 x 35 x 85 mm (7.87 x 1.38 x 3.35 in) |
| Colour | White or Black (Optional) |
| Installation | Ceiling Mounting, Extended Ceiling Mounting & Lintel Mounting (with Optional Multifunctional Bracket) |
