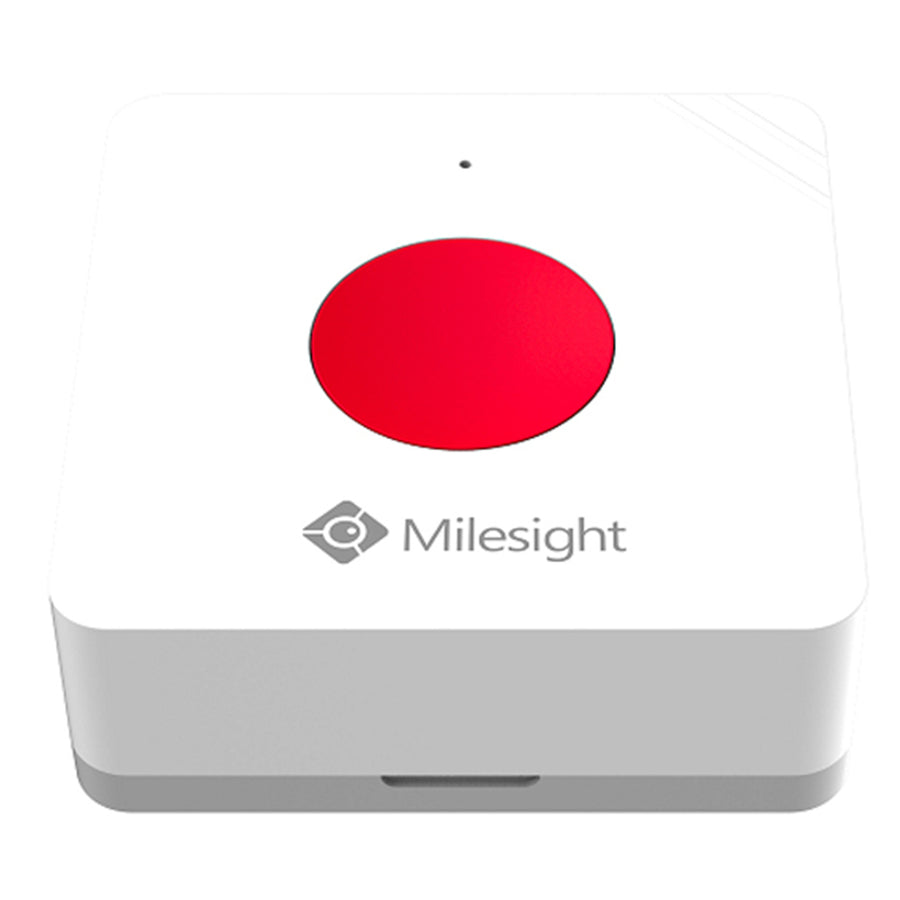

WS101-SOS-915M - MIlesight LoRaWAN AS923/AU915 IoT Smart SOS Button (Red)

SKU: WS101-SOS-915M ● In Stock

$44.85

Free shipping over $299 Genuine product 7-day returns

WS101-SOS-915M - MIlesight LoRaWAN AS923/AU915 IoT Smart SOS Button (Red)

Features

MIlesight LoRaWAN AS923/AU915 IoT Smart SOS/Panic Button (Red). The Milesight WS101 is a LoRaWAN-based smart IoT button for wireless controls, triggers and alarms. WS101 supports multiple press actions, all of which can be defined by the user to control devices or trigger scenes.

Compact and battery-powered, WS101 is easy to install and carry everywhere. Compliant with Milesight LoRaWAN® gateways and Milesight IoT Cloud solutions, users can know the alarms and use the WS101 to easily trigger other sensors or appliances remotely via web or mobile Apps. WS101 can be widely used in smart homes, smart offices, hotels, schools, etc.

- Supports multiple press actions to control devices, trigger a scene or send emergency alarms
- Easy to install or carry with its convenient size
- Built-in LED indicator and buzzer for press actions, network status, low battery indication
- Ultra-wide-distance wireless transmission: 15 km with line of sight
- Equipped with NFC for one-touch configuration and supports card emulation mode
- Functions well with standard LoRaWAN® gateways and network servers
- Compliant with Milesight IoT Cloud

Specifications

Technical Specifications

Manufacturer's Code	WS101-SOS-915M
Frequency	AU915/AS923
Tx Power	22dBm
Sensitivity	-137dBm @ 300bps
Mode	OTAA/ABP Class A
Buttons	1 × External Button + 1 × Reset Button (Internal)
LED Indicator	1
Buzzer	Supported
Configuration	NFC Configuration via Mobile App
Power Supply	1 × 1650 mAh ER14335 Li-SOCl2 battery
Battery Life	>5 years (10 pushes per day)
Operating Temperature	-30°C to +60°C
Relative Humidity	=90% (non-condensing)
Ingress Protection	IP30
Dimensions	50 × 50 × 18 mm
Material	Anti-flaming Polycarbonate
Color	White (Button: Red)
Installation	On flat surfaces with screws or 3M tapes, Lanyard
Package Contents	SOS Button sensor, QSG, 3M Tape, Mounting Screws
