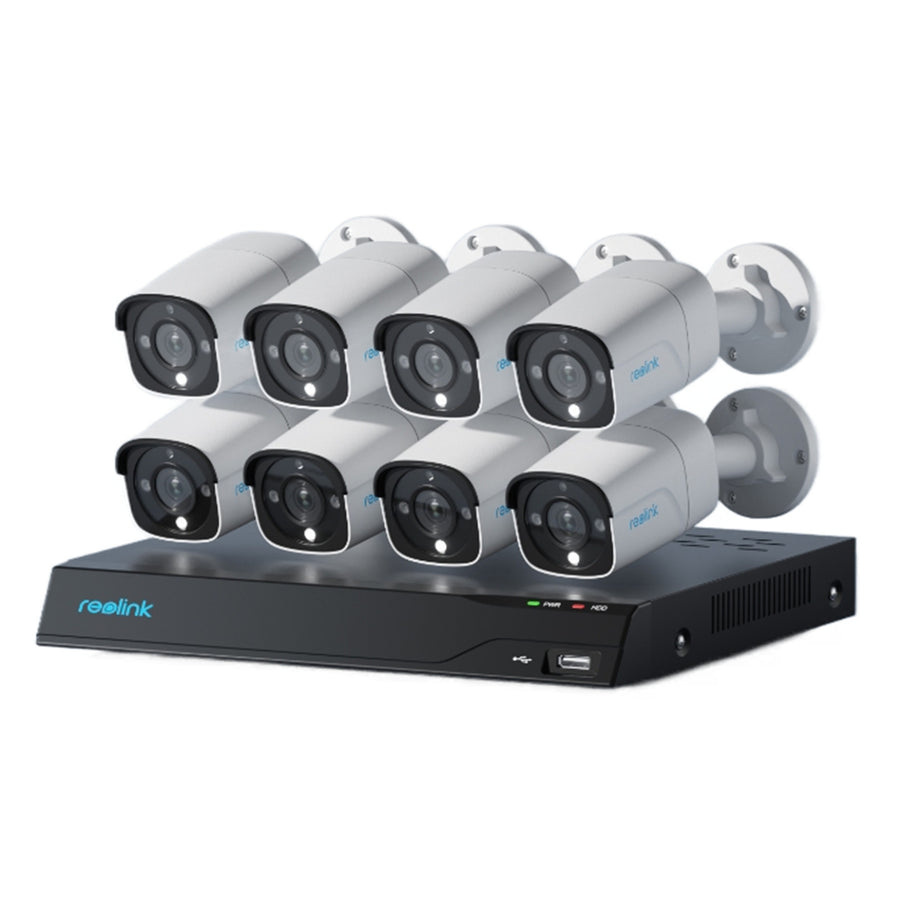

NVS16-12MB8 - Reolink 4K+ 16 Channel NVR Surveillance System with Built-in 4TB HDD Range
NVS16-12MB8 - Reolink 4K+ 16 Channel NVR Surveillance System with Built-in 4TB HDD Range
Features
Smart 12MP PoE Security System With 24/7 Recording
- Person/Vehicle Detection
- 12MP Ultra HD
- Power over Ethernet
- 16-Channel NVR
Get All the Details in 12MP
The security system goes above and beyond to deliver video quality of 12MP resolution, capturing even the finest nuances in stunning detail.

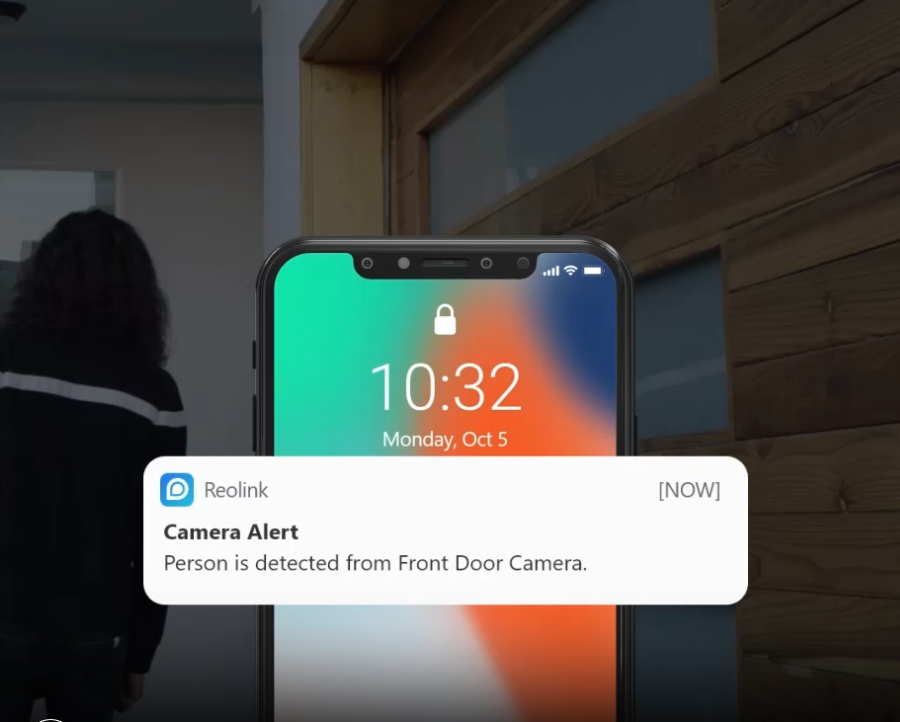

Smart Person/Vehicle Alerts
By analyzing the shapes of humans, vehicles, and animals, this security camera system can accurately detect these objects and sends you real-time event alerts. Ignoring other less important objects' movements, it greatly reduces false alarms.
Clear & Full-Color Night Vision
This smart camera kit with spotlights offers full-color video recording day and night. It continues to keep your family firmly guarded after sundown.

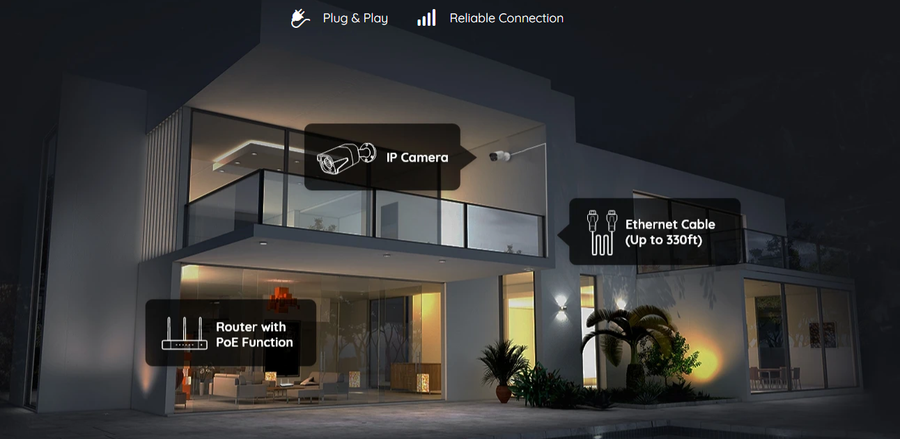

PoE - Faster, Easier & Lower-Cost Installation
Thanks to Power over Ethernet (PoE) technology, each camera of this kit can transmit videos and be charged simultaneously via only one network cable . You can install these cameras quickly and nicely.

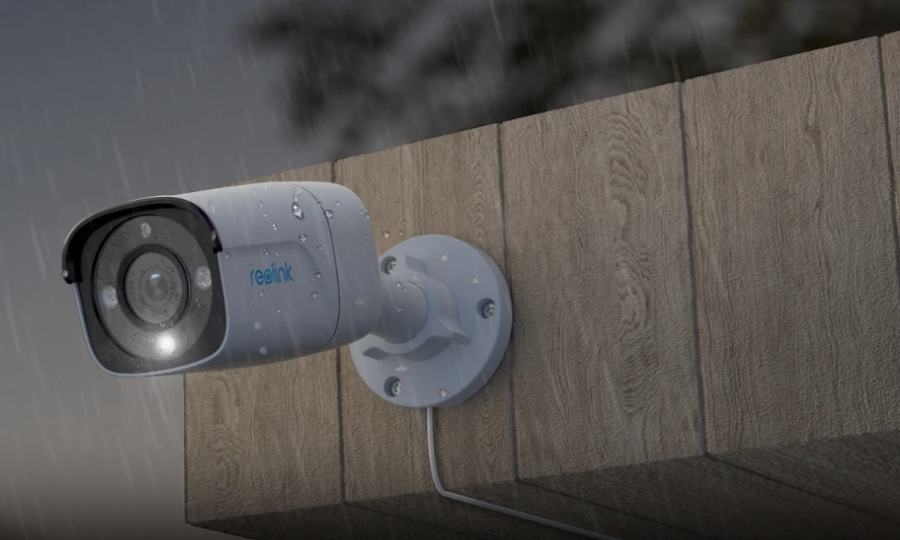

Stay Strong, Stay Weatherproof
Armed with rugged housing, the IP66 weatherproof cameras can stand up to thunderstorms, extreme cold or heat and any other harsh weather. Your faithful guard never quits.
Easy Management
You can also access and control your cameras via Reolink App and Client, besides NVR. Just a touch away, manage your home, store or factory easily.

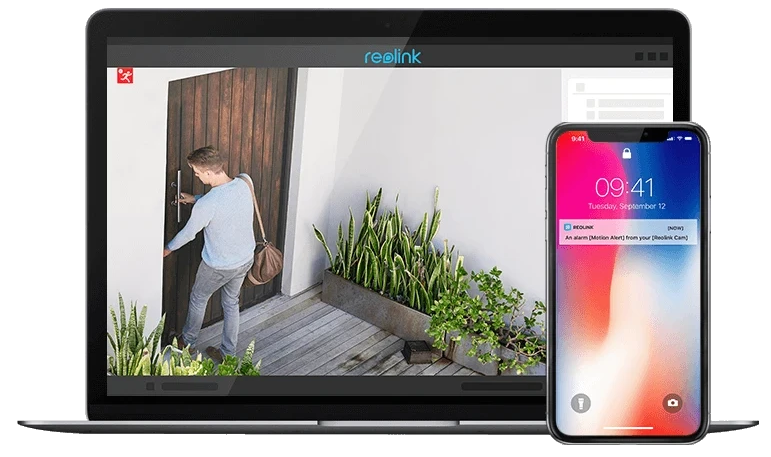

Motion Alerts
Once it detects something suspicious, this motion-triggered camera will send to your device an instant push notification. Know what's happening all the time.

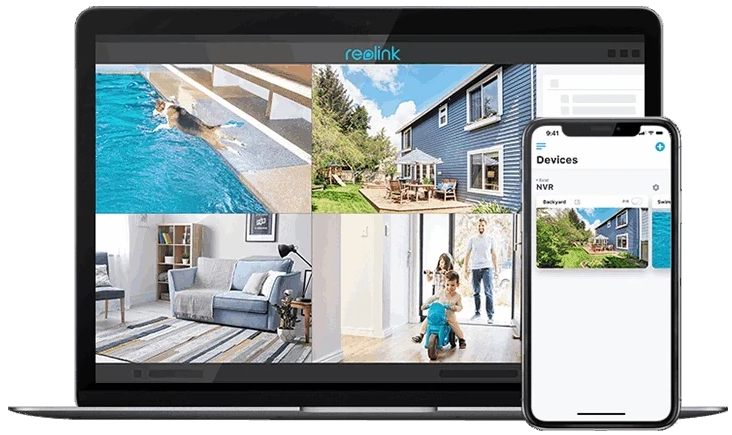

Multi-Cam Live Feed
See the live feed of multiple cams on the same screen. Easier to have an overview of your property.

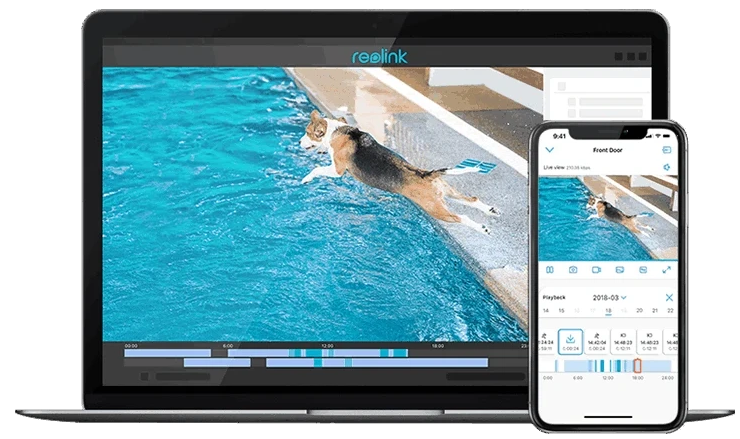

Smart Playback
You can not only replay saved videos to find key information but also filter the video by detection modes and control the timeline to quickly locate what you want to see.

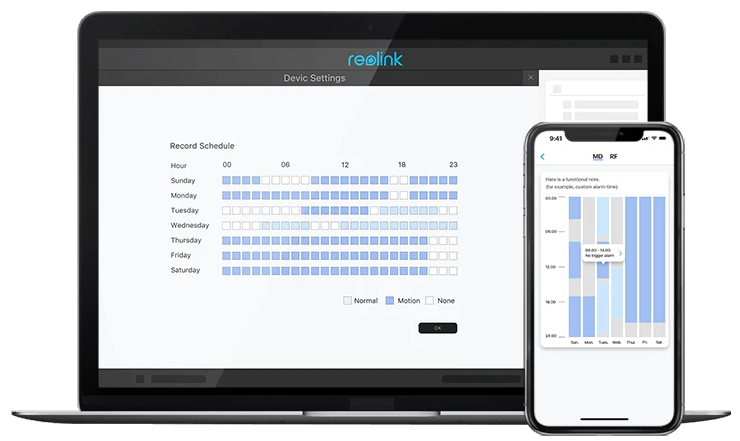

Record Scheduling
You can choose to have the camera record 24/7 continuously, only when the movement is detected, or in accordance with your daily schedule.

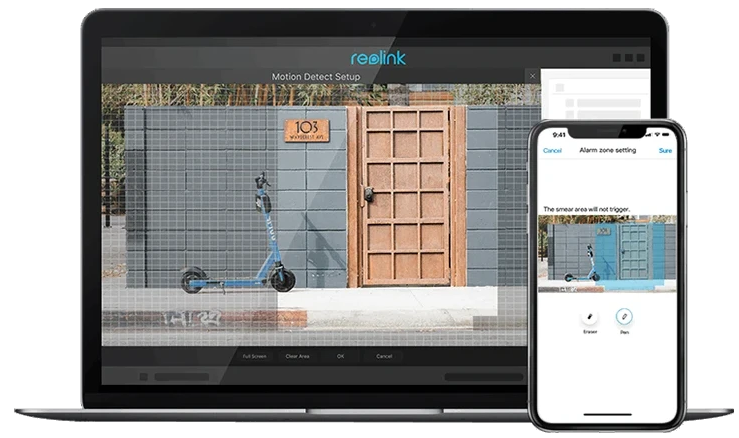

Motion Zone
You can customize the motion zone to your like, deciding where objects' movements will be detected and where they will not.
Specifications
Technical Specifications
| Image Sensor | 1/2.49" CMOS Sensor |
|---|---|
| Video Resolution | Default: 4512X2512 (12 megapixels) at 20 fps |
| Lens | f=4.0mm; F=1.6, with IR-cut filter |
| Video Format | H.265 |
| Field of View | - Horizontal: 93°- Vertical: 49° |
| Day & Night | Auto-switching with IR-cut filter |
| Infrared Night Vision | 30 meters (LED: 2pcs/28mil/850nm) |
| Color Night Vision | Spotlight: 1pcs/4.3W/6500K/700 Lumens |
| Audio | Two-way audio (via Reolink App/Client) |
| POE | IEEE 802.3af, 48V Active |
| DC Power | DC 12.0V?1A, <12W |
| Power | DC power port |
| System | Reset button |
| Ethernet | One 10M/100Mbps; RJ45 |
| Audio | Built-in microphone and speaker |
| Frame Rate | - Mainstream: 2fps - 20fps (default: 20fps)- Substream: 4fps - 20fps (default: 10fps) |
| Code Rate | - Mainstream: 3072Kbps - 10240Kbps (default: 8192Kbps)- Substream: 128Kbps - 1024Kbps (default: 768Kbps) |
| Smart Alarm | Motion detection; person detection; vehicle detection; pet detection |
| Temperature | Operating temperature: -10°C~+55°C (14°F~131°F) |
| Humidity | Operating humidity: 10% ~ 90% |
| Waterproof | IP67 |
| Dimension | F67*187mm |
| Weight | 460g |
| Hardware | V2 |
| IP Video Input | PoE IP camera x 16 |
| Audio Input | Cameras with built-in mic |
| Video Output | VGA, HDMI |
| Display Resolution | - HDMI: 3840*2160, 1920*1080, 1280*1024, 1280*720, 1024*768- VGA: 1920*1080, 1280*1024, 1280*720, 1024*768 |
| Audio output | 1-channel, RCA |
| Live View/Playback Resolution | 7680×2160, 4608×1728, 4512×2512, 4096×3072, 3840×2160, 2560×2560, 2560×1920, 2560×1440, 2048×1536, 2304×1296, 1080p, 720p |
| Video Format | H.265, H.264 |
| Synchronous Playback | Up to 4 channels |
| SATA | 2 x SATA interface (1 x 4TB HDD included) |
| Capacity | Up to 12TB (max. 6TB capacity for each HDD) |
| External HDD | No |
| USB Interface | 2 x USB 2.0 |
| Network Interface | - 1, RJ-45 10/100 Mbps self-adaptive Ethernet interface for LAN/WAN- 16, RJ-45 10/100 Mbps self-adaptive PoE Ethernet interface for IP camera |
| Max. Power Per Port | 25W |
| Supported Standard | IEEE 802.3 af/at |
| Network Protocol | HTTP, TCP/IP, UDP, DHCP, P2P, UPNP, RTSP, SMTP, SSL/TLS, DNS, DDNS, NTP, FTP |
| Browser Supported | Firefox, Chrome, Edge, Safari |
| OS Supported | PC: Windows, Mac OS; Smartphone: iOS, Android |
| Max. User Access | 20 users (1 admin account & 19 user accounts); up to 12 simultaneous video streams (10 substreams & 2 mainstreams) |
| Power Supply | DC 48V~54V |
| Power Consumption | <10W (without HDD & PoE) |
| Working Environment | Temperature: -10°C~+45°C (14°F~113°F); humidity: 10%~90% |
| Dimensions | 330 x 45 x 285mm |
| Weight | 2.4kg |
