Features
NVS16 - 16-Channel PoE NVR for 24/7 Continuous Recording
- Support up to 16MP
- Power over Ethernet
- 16-Channel
- 4TB HDD Built-in

24/7 Continuous Recording
If you want 24/7 video recording or if you have multiple IP cameras to manage, this Reolink NVR is your best choice.
- Pre-installed 4TB HDD for 24/7 recording and monitoring.
- Support all cameras recording at the same time (up to 16 cameras).
- The motion detection recording function will trigger recording only when motion is detected. It's much flexible and helpful for longer recording.
- Pre-installed 4TB Seagate HDD
- Up to 16 Cameras

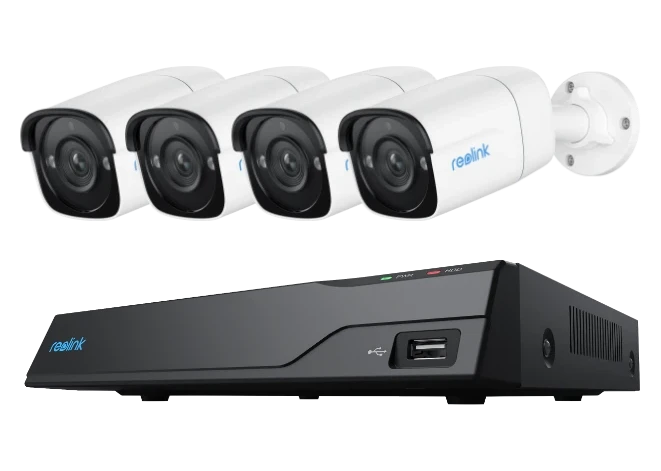

Customize Your Own Security Camera System
It supports all Reolink 16MP, 12MP, 8MP, 5MP or 4MP IP cameras. You can choose up to 16 cameras (not included) to work with this NVR & build your own video surveillance system.
* Reolink NVRs are designed for Reolink security cameras ONLY.

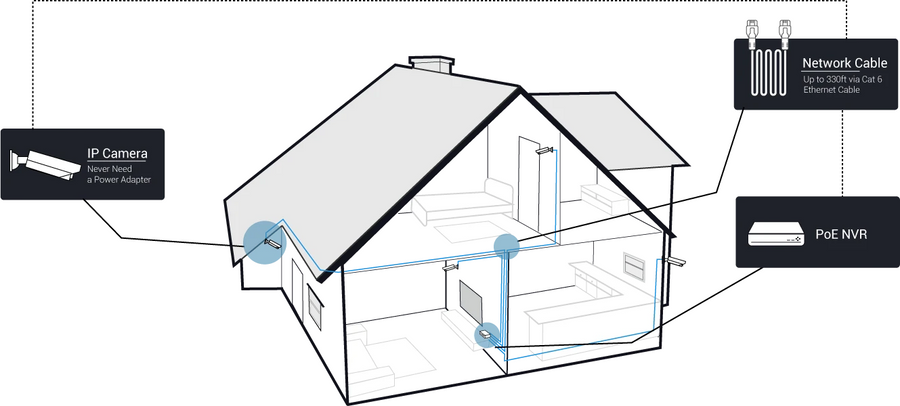

PoE - Easy Setup & Real Plug and Play
A real plug and play network video recorder! It features PoE (Power over Ethernet), with a single network cable connecting each of your IP cameras to the NVR for both power supply and video signal transmission. Easy wiring - the wiring process can't be simpler for DIY enthusiasts.

Local and Remote Access & Control

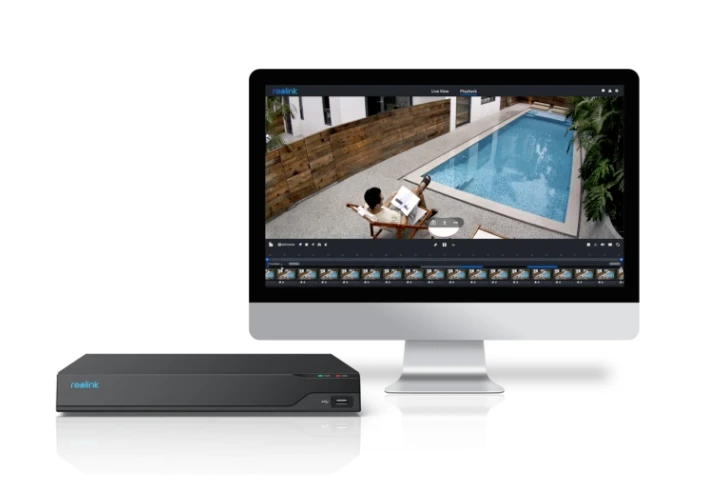

For local access and control
Connect the system to a monitor or an HD TV.
For remote access and control
Use free Reolink App on a mobile device, Reolink Client on a computer or via web browsers.

More Features
Use this NVR with Reolink PoE cameras and you can get a professional, reliable and DIY security camera system. You can play back any recorded video, back up local data, and do more. For more features, refer to RLK16-810B8-A NVR security system.

Specifications
Technical Specifications
| Hardware | 4TB HDD: N6MB01 |
|---|---|
| IP Video Input | PoE IP camera x 16 |
| Audio Input | Cameras with built-in mic |
| Video Output | VGA, HDMI |
| Display Resolution | - HDMI: 3840*2160, 1920*1080, 1280*1024, 1280*720, 1024*768- VGA: 1920*1080, 1280*1024, 1280*720, 1024*768 |
| Audio output | 1-channel, RCA |
| Live View / Playback Resolution | 7680x2160, 4608x1728, 4512x2512, 4096x3072, 3840x2160, 2560x2560, 2560x1920, 2560x1440, 2048x1536, 2304x1296, 1080p, 720p |
| Video Format | H.265, H.264 |
| Synchronous Playback | Up to 4 channels |
| SATA | 2 x SATA interface (1 x 4TB HDD included) |
| Capacity | Up to 12TB (max. 6TB capacity for each HDD) |
| External HDD | No |
| USB Interface | 2 x USB 2.0 |
| Network Interface | - 1, RJ-45 10/1000 Mbps self-adaptive Ethernet interface for LAN/WAN- 16, RJ-45 10/100 Mbps self-adaptive PoE Ethernet interface for IP camera |
| Max. Power Per Port | 25W |
| Supported Standard | IEEE 802.3 af/at |
| Network Protocol | HTTP, TCP/IP, UDP, DHCP, P2P, UPNP, RTSP, SMTP, SSL/TLS, DNS, DDNS, NTP, FTP |
| Browser Supported | Firefox, Chrome, Edge, Safari |
| OS Supported | PC: Windows, Mac OS; smartphone: iOS, Android |
| Max. User Access | 20 users (1 admin account & 19 user accounts); up to 12 simultaneous video streams (10 substreams & 2 mainstreams) |
| Power Supply | DC 48V~54V |
| Power Consumption | <10W (without HDD & PoE) |
| Working Environment | Temperature: -10°C~+45°C (14°F~113°F); humidity: 10%~90% |
| Dimensions | 330 x 45 x 285mm |
| Weight | 2.4kg |
