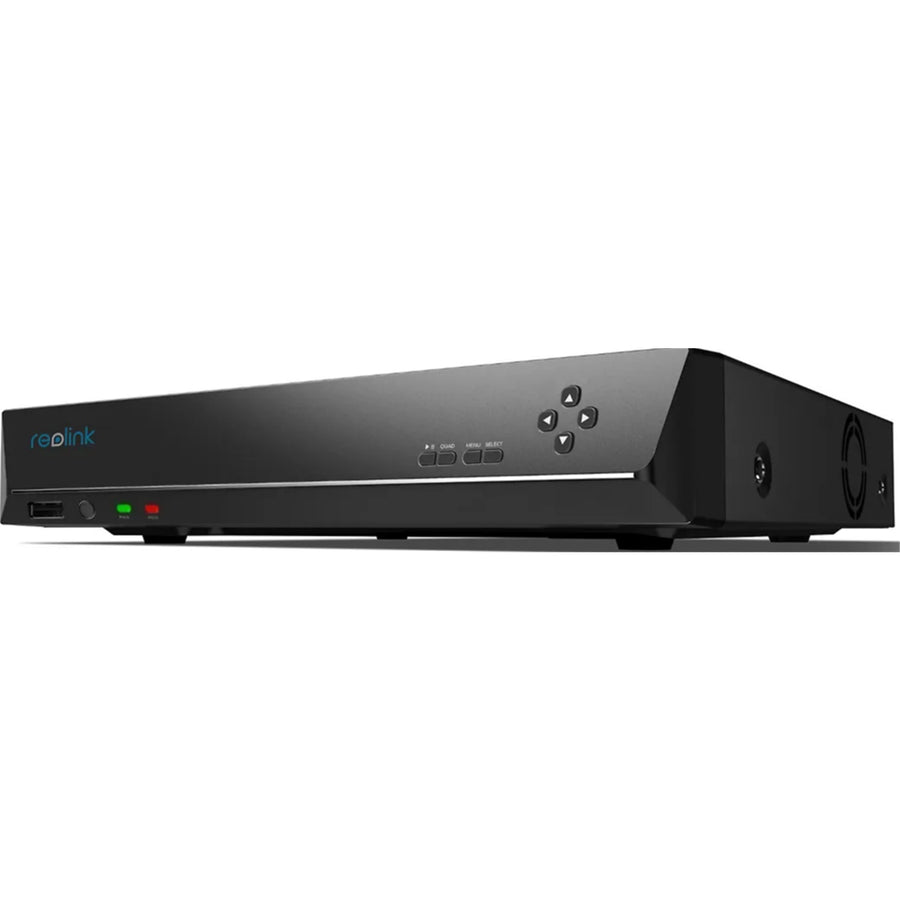

RLN36 - Reolink 36 Channel 12MP Ultra HD Network Video Recorder
RLN36 - Reolink 36 Channel 12MP Ultra HD Network Video Recorder
Features
Expandable, Customizable, Centralized
A multi-channel network video recorder is important for multi-location monitoring, especially for a larger area. This Reolink 4-channel NVR can be connected to 36 working cameras at the same time, all with up to 12MP resolution supported. It also has additional alarm in/out channels for you to customize various detecting/responding modes. The massive data produced can be safely stored into up to three Max. 16TB HDDs (purchased separately). Get ready to have a centralized easy monitoring!
48TB HDD Capacity
Bigger is always better when it comes to NVR storage capacity. RLN36 supports up to three maximum 16TB HDDs (48TB in total!), allowing you to include more surveillance cameras, keep 24/7 recordings, and store videos for a longer time.

Ready to Listen and Talk
The built-in audio ports make it possible to have a two-way talk via NVR. You can promptly respond to suspicious visitors or live communicate with the on-site persons.

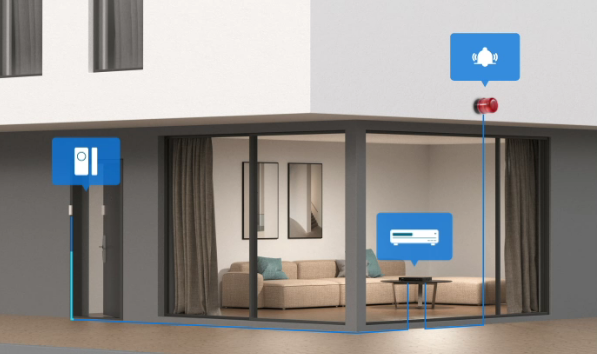

Enrich Your Surveillance System
8 alarm-in channels for linking extra wired sensors (temperature, IR, magnetic sensors, etc.) to detect separate events; 4 alarm-out channels for commanding controllers (door, light, siren switches, etc.) to execute actions.

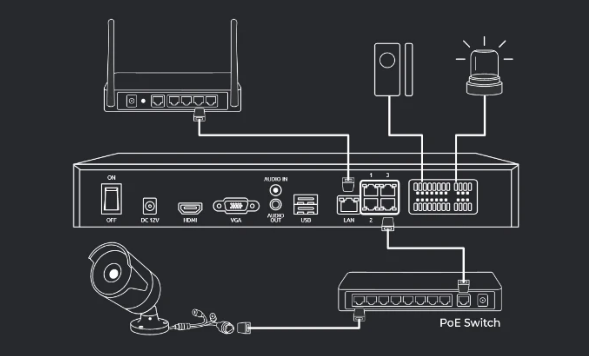

Easy & Flexible Setup
The NVR has one LAN port for connecting to a router and four Internet ports (non-PoE) for connecting to PoE switches or directly to cameras. You can also connect the cameras to the NVR via WiFi without wiring.

Specifications
Technical Specifications
| Name | 4-Channel 12MP Network Video Recorder |
|---|---|
| Hardware | N5MB01 |
| Video Out | 1 HDMI, 1 VGA |
| Audio Ports | 1 audio-in channel, RCA; 1 audio-out channel, RCA |
| USB Ports | Front panel: 1 x USB 2.0; back panel: 1 x USB 2.0, 1x USB 3.0 |
| Ethernet Ports | - 4 x RJ-45, 10/100/1000 Mbps self-adaptive (for IP cameras)- 1 x RJ-45, 10/100/1000 Mbps self-adaptive (for LAN/WAN)- No PoE Port |
| Alarm | In: 8 channels; Out: 4 channels |
| IP Camera Input | Supports up to 36 channels of IPC access; each channel up to 12MP input |
| Video Output | - HDMI: 3840x2160, 1920x1080, 1280x1024, 1280x720, 1024x768- VGA: 1920x1080, 1280x1024, 1280x720, 1024x768 |
| Two-Way Audio | Built-in audio in & out ports |
| Audio In | Via cameras with mic; via built-in 1 channel |
| Audio Out | Via bulit-in 1 channel |
| Video Compression | H.265, H.264 |
| Live View / Playback Resolution | 4608x1728, 4512x2512, 4096x3072, 3840x2160, 2560x1920, 2560x1440, 2048x1536, 2304x1296, 1080p, 720p(supports only 1-channel playback if you view it in 8MP or higher resolution.) |
| Synchronous Playback | 1-4 channels |
| Supported Modes | Person/vehicle event recording; motion-triggered recording; 24/7 recording |
| Internal HDD | 3 SATA ports for 3 HDDs (optional) |
| External HDD | No |
| Max. Capacity | 48TB (max. 16TB HDD for each SATA) |
| Network Protocols | HTTP, TCP/IP, UDP, DHCP, P2P, UPNP, RTMP, SMTP, SSL/TLS, DNS, DDNS, NTP |
| Browsers Supported | Edge, Firefox, Chrome, Safari |
| OS Supported | PC: Windows, Mac OS; smartphone: iOS, Android |
| Max. User Access | 20 users (1 admin account & 19 user accounts); up to 12 simultaneous video streams (10 substreams & 2 mainstreams) |
| Power Supply | DC 12V/5.4A |
| Power Consumption | <10W(without HDD) |
| Working Environment | -10°C ~+45°C (14°F~113°F); 10%~90% |
| Dimensions | 330 x 48 x 310mm |
| Weight | 2.26kg (without HDD) |
