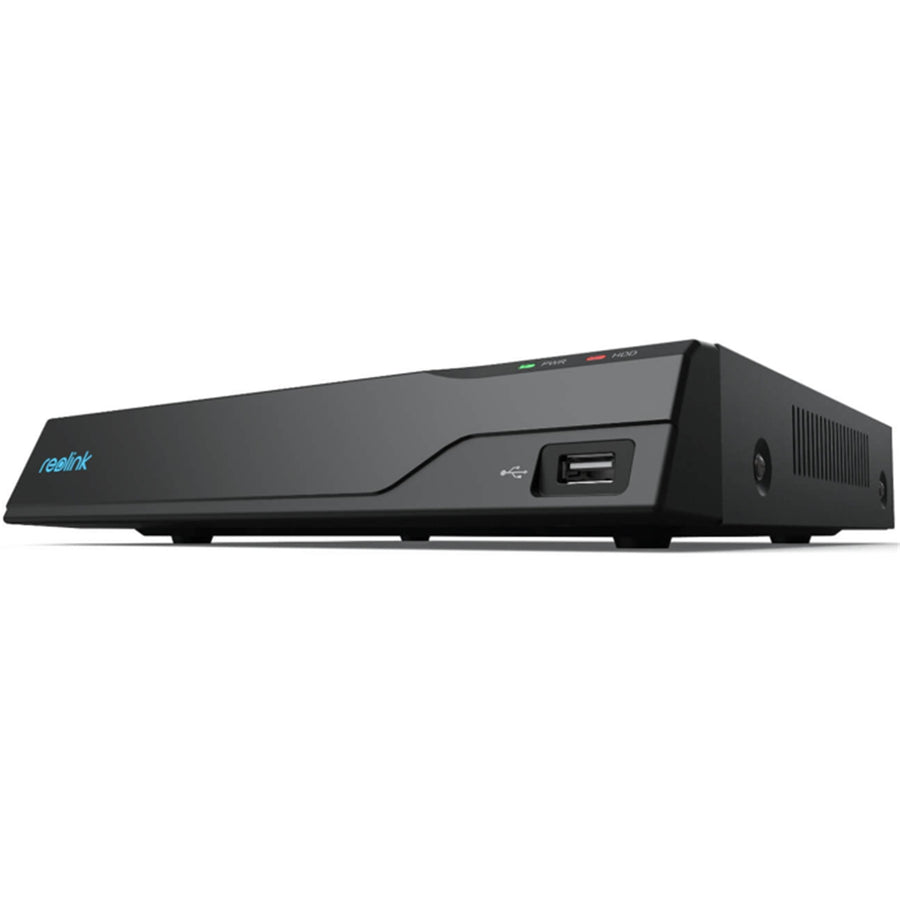

NVS8 - Reolink 8-Channel PoE NVR,2TB HDD Built-in,With 8 POE Ports Range
NVS8 - Reolink 8-Channel PoE NVR,2TB HDD Built-in,With 8 POE Ports Range
Features
24/7 Continuous Recording
If you want 24/7 video recording or if you have multiple IP cameras to manage, this Reolink NVR is your best choice.
- Pre-installed 2TB HDD for 24/7 recording and monitoring.
- Support all cameras recording at the same time (up to 8 cameras).
- If you want longer recording, try motion detection recording, which will trigger recording only when motion is detected.
- Allow you to install an external hard disk drive via e-SATA for more storage (up to 6TB).
Customize Your Own Security Camera System
Reolink NVS8 8-channel PoE NVR works perfectly with all our IP cameras - including 12MP, 8MP, 5MP and 4MP PoE/WiFi cameras - for 24/7 recording, live views and more features. Apart from this NVR, you can choose up to 8 cameras to build your own video surveillance system.
* The Reolink NVRs are designed for Reolink security cameras ONLY.
- IP66 Certified Weatherproof
- With Audio (Mic) (Optional)
PoE - Easy Setup & Real Plug and Play
A real plug and play network video recorder! This NVS8 NVR features PoE (Power over Ethernet), with a single network cable connecting each of your IP cameras to the NVR for both power supply and video signal transmission. Easy wiring - the wiring process can't be simpler for DIY enthusiasts.
Local and Remote Access & Control
For local access and control
Connect the system to a monitor or an HD TV.
For remote access and control
Use free Reolink App on a mobile device, Reolink Client on a computer or via web browsers.
Specifications
Technical Specifications
| Hardware | N7MB01 |
|---|---|
| IP Video Input | PoE IP Camera x 8 |
| Audio Input | Cameras with built-in mic |
| HDMI Output Resolution | 3840x2160, 1920x1080, 1280x1024, 1280x720, 1024x768 |
| VGA Output Resolution | 1920x1080, 1280x1024, 1280x720, 1024x768 |
| Audio output | 1-Channel, RCA |
| Video Format | H.264, H.265 |
| Live View / Playback Resolution | 4096x3072, 3840x2160, 2560x1920, 2560x1440, 2048x1536, 2304x1296, 1080p, 720p |
| Synchronous Playback | Up to 4 channels |
| SATA | 1 x SATA interface (1 x 2TB HDD included) |
| External HDD | 1 eSATA Interface for HDD |
| Capacity | Up to 16TB (max. 8TB capacity for each HDD) |
| USB Interface | 2 x USB 2.0 |
| Network Interface | - 1, RJ-45 10/100 Mbps self-adaptive Ethernet interface for LAN/WAN- 8, RJ-45 10/100 Mbps self-adaptive PoE Ethernet interface for IP camera |
| Max. Power Per Port | 25W |
| Supported Standard | IEEE 802.3af/at |
| Network Protocols | HTTP, TCP/IP, UDP, DHCP, P2P, UPNP, RTSP, SMTP, SSL/TLS, DNS, DDNS, NTP, FTP |
| Browsers Supported | Edge, Firefox, Chrome, Safari |
| OS Supported | PC: Windows, Mac OS; smartphone: iOS, Android |
| Max. User Access | 20 users (1 admin account & 19 user accounts); supports up to 12 simultaneous video streams (10 substreams & 2 mainstreams) |
| Power Supply | DC 48V~53V |
| Power Consumption | <10W (Without HDD&PoE) |
| Working Environment | Temperature: -10°C~+45°C (14°F~113°F); humidity: 10%~90% |
| Dimensions | 260 x 41 x 230mm |
| Weight | 1.4kg |
