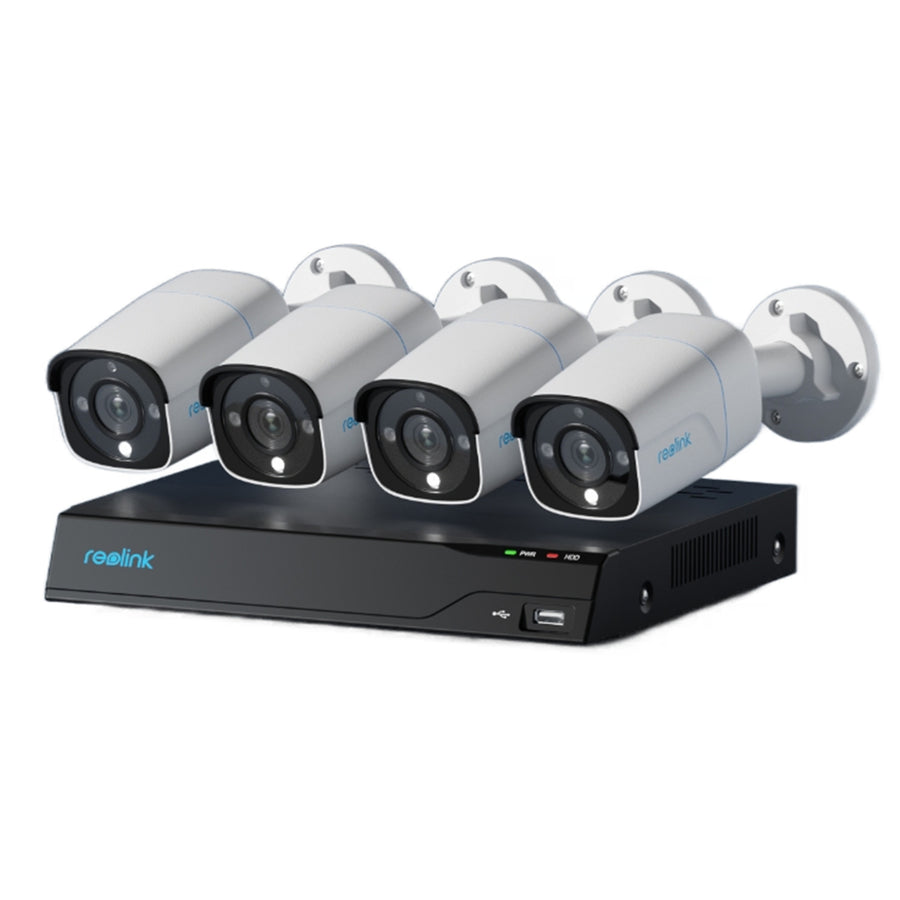

NVS8-8MB4 - Reolink 4K 8 Channel NVR Surveillance System with Built-in 2TB HDD Range
NVS8-8MB4 - Reolink 4K 8 Channel NVR Surveillance System with Built-in 2TB HDD Range
Features
4K Ultra HD Security System with Smart Detection
- Power over Ethernet
- Person/Vehicle Detection
- With 8-Channel NVR
- 2TB HDD Built-In
Embedded with Smart Detection
Equipped with cutting-edge smart detection technology, this security system is intelligent enough to distinguish people and cars from other objects and gives you true peace of mind by eliminating false alarms.

View Everything in 4K Ultra HD
4K Ultra HD (8MP, 3840 x 2160) delivers almost 4 times the clarity of 1080p, and by a wide margin, outshines 5MP/4MP Super HD. This superior kit can show the finest key details in vividness, even when you digitally zoom in, so that every ambiguity in video footage you met before is cleared up.
Ultra-Clarity Also at Night
The 18pcs powerful infrared LEDs in each 4K security camera emit invisible lights that pierce the darkness up to 100 feet. Plus, advanced 3D-DNR technology dramatically reduces noise levels - ensuring clearer, sharper and smoother night performance.

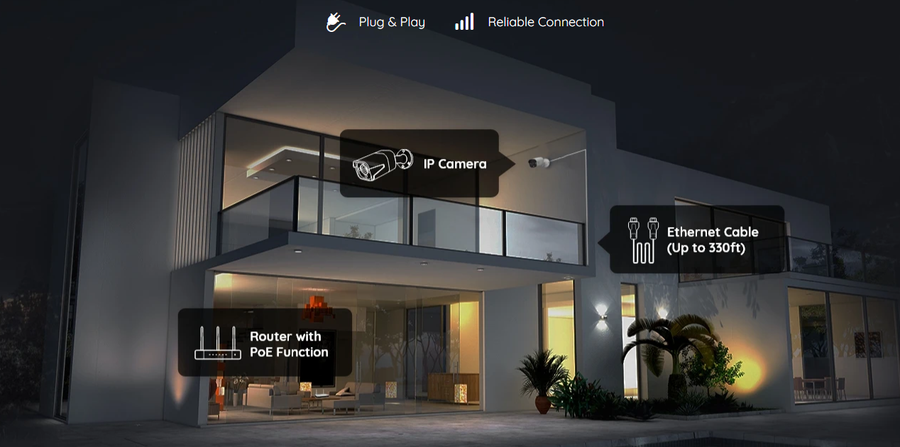

PoE - Easy Setup, Even for a Beginner
A real plug and play security system! It features PoE (Power over Ethernet) and needs only one network cable for both power supply and video signal transmission. Easy wiring - the wiring process can't be simpler for DIY enthusiasts and beginners.

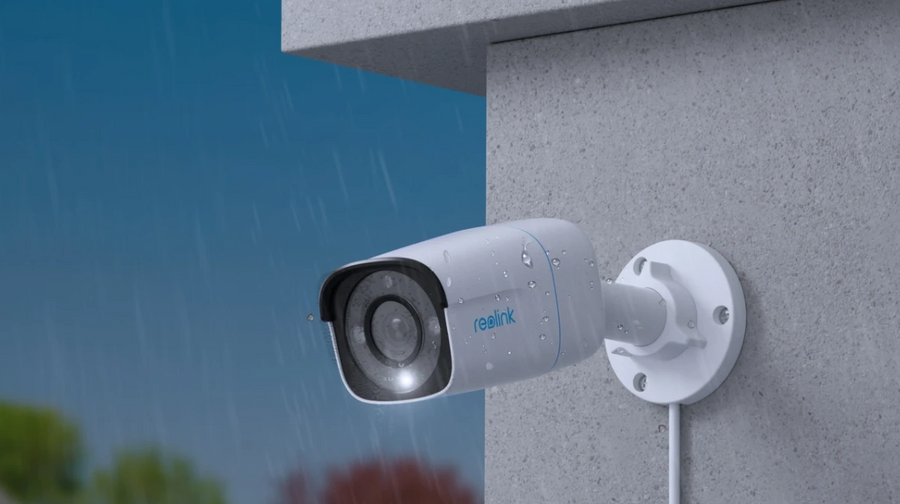

Ready for Anywhere, Inside & Outside
Feel free to put these 4K Ultra HD PoE cameras anywhere, outdoors or indoors! With IP67 waterproof rating, these cameras will never shrink back in front of the elements, like freezing rain, heavy snow, extreme cold and heat.

Easy Management
You can also access and control your cameras via Reolink APP and Client, besides NVR. Just a touch away, manage your home, store or factory easily.

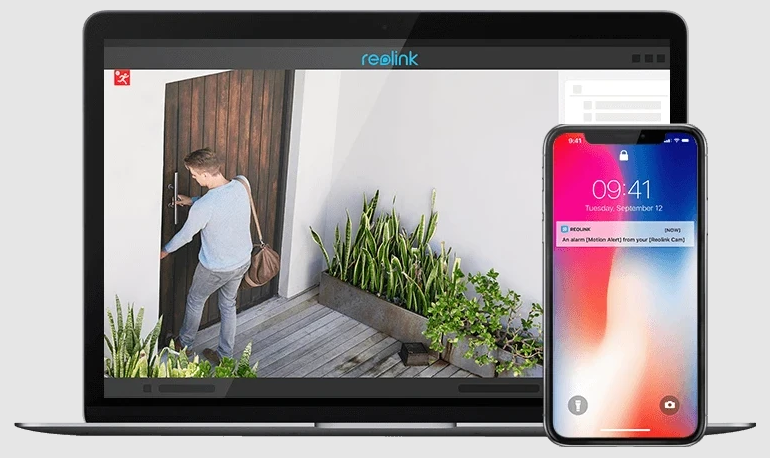

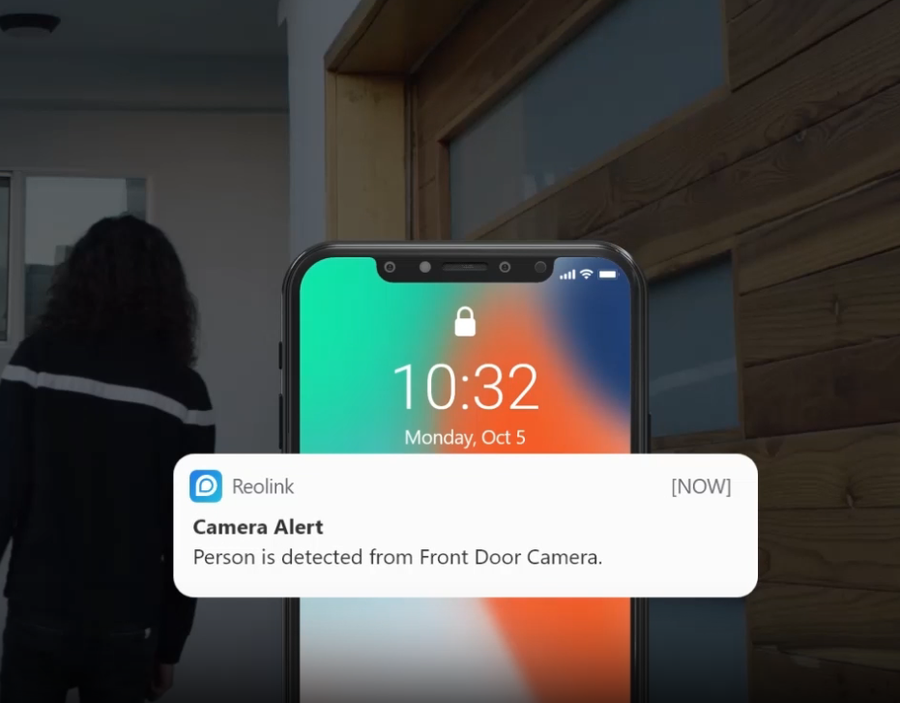

Motion Alerts
Once it detects something suspicious, this motion-triggered camera will send to your device an instant push notification. Know what's happening all the time.

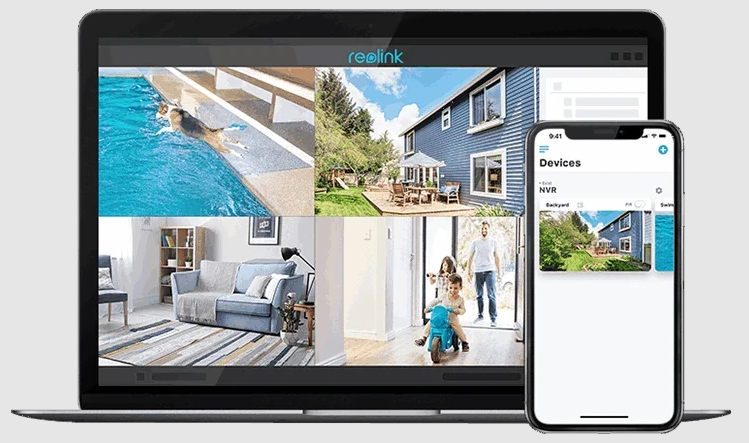

Multi-Cam Live Feed
See the live feed of multiple cams on the same screen. Easier to have an overview of your property.

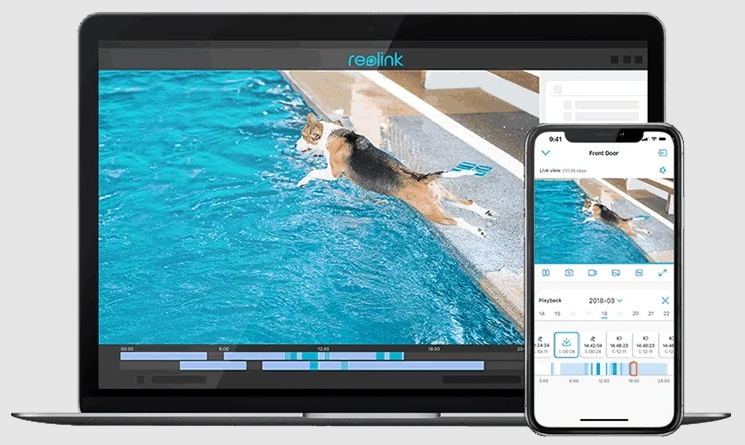

Smart Playback
You can not only replay saved videos to find key information but also filter the video by detection modes and control the timeline to quickly locate what you want to see.

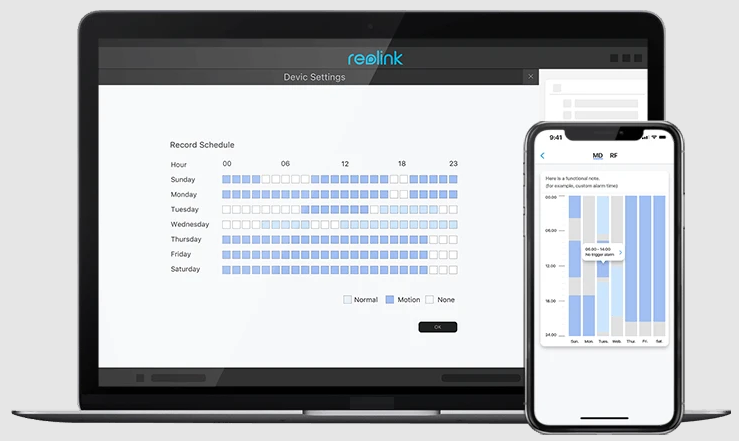

Record Scheduling
You can choose to have the camera record 24/7 continuously, only when the movement is detected, or in accordance with your daily schedule.

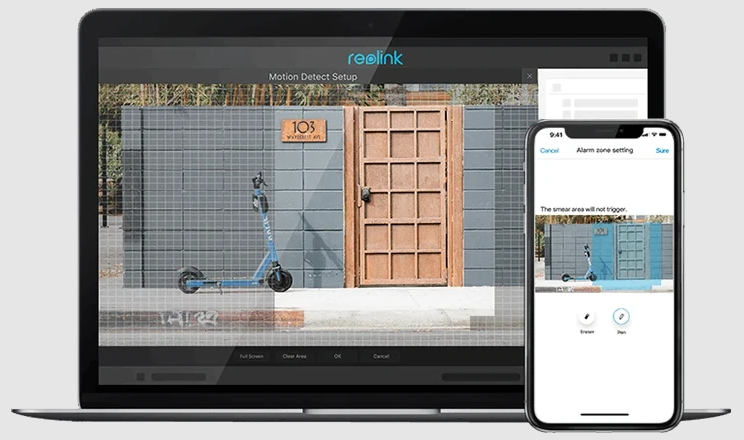

Motion Zone
You can customize the motion zone to your like, deciding where objects' movements will be detected and where they will not.

Specifications
Technical Specifications
| Image Sensor | 1/2.49" CMOS Sensor |
|---|---|
| Video Resolution | Default: 3840X2160 (8 megapixels) @20FPS |
| Lens | f=4.0 mm fixed, F=2.0, with IR cut |
| Video Format | H.265 |
| Field of View | - Horizontal: 87°- Vertical: 44° |
| Day & Night | IR-cut filter with auto-switching |
| Night Vision | 30 meters (100ft) (LED: 18pcs/14mil/850nm) |
| Frame Rate | - Mainstream: 2fps - 20fps (default: 20fps)- Substream: 4fps - 15fps (default: 10fps) |
| Code Rate | - Mainstream: 4096Kbps - 8192Kbps (default: 6144Kbps)- Substream: 64Kbps - 512Kbps (default: 256Kbps) |
| Audio | Audio recording |
| Smart Alarms | Person detection/vehicle detection/motion detection |
| Recording Modes | Motion-triggered recording (default); scheduled recording, 24/7 recording |
| PoE | IEEE 802.3af, 48V Active |
| DC Power | DC 12.0V 1A, <12W |
| Power | DC power port |
| System | Reset button |
| Ethernet | One 10M/100Mbps RJ45 |
| Audio | Built-in microphone |
| Temperature | Operating temperature: -10°C~+55°C (14°F~131°F) |
| Humidity | Operating humidity: 10% ~ 90% |
| Waterproof | IP67 |
| Dimension | F66 x 192mm |
| Weight | 485g |
| Hardware | V2 |
| IP Video Input | PoE IP camera x 8 |
| Audio Input | Cameras with built-in mic |
| Video Output | VGA, HDMI |
| Display Resolution | - HDMI: 4096*3072, 3840*2160, 1920*1080, 1440*900, 1280*1024, 1280*720, 1024*768- VGA: 1920*1080, 1440*900, 1280*1024, 1280*800, 1280*720, 1024*768 |
| Audio output | 1-channel, RCA |
| Video Format | H.264, H.265 |
| Live View/Playback Resolution | 7680×2160, 4608×1728, 4512×2512, 4096×3072, 3840×2160, 2560×2560, 2560×1920, 2560×1440, 2048×1536, 2304×1296, 1080p, 720p |
| Synchronous Playback | Up to 4 channels |
| SATA | 1 x SATA interface (1 x Seagate 2TB HDD included) |
| External HDD | 1 eSATA interface for HDD |
| Capacity | Up to 12TB (Max. 6TB capacity for each HDD) |
| USB Interface | 2 x USB 2.0 |
| Network Interface | - 1, RJ-45 10/100 Mbps self-adaptive Ethernet interface for LAN/WAN- 8, RJ-45 10/100 Mbps self-adaptive PoE Ethernet interface for IP camera |
| Max. Power Per Port | 25W |
| Supported Standard | IEEE 802.3af/at |
| Network Protocols | HTTP, TCP/IP, UDP, DHCP, P2P, UPNP, RTSP, SMTP, SSL/TLS, DNS, DDNS, NTP, FTP |
| Browsers Supported | Edge, Firefox, Chrome, Safari |
| OS Supported | PC: Windows, Mac OS; SmartPhone: iOS, Android |
| Max. User Access | 20 users (1 admin account & 19 user accounts); supports up to 12 simultaneous video streams (10 substreams & 2 mainstreams) |
| Power Supply | DC 48V/1.875-2.5A |
| Power Consumption | <10W (without HDD & PoE) |
| Working Environment | Temperature: -10°C~+45°C (14°F~113°F); humidity: 10%~90% |
| Dimensions | 260 x 41 x 230mm |
| Weight | 1.4kg |
